1 1/2" x 45° 45DEG Rigid Elbows
Part No.: 150RE45
Size: 1 1/2" x 45°
Category: 45DEG Rigid Elbows

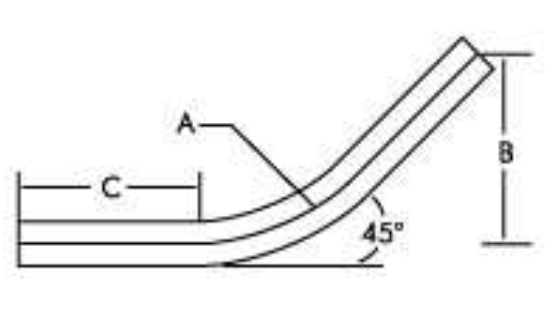

1 1/2" x 45° 45DEG Rigid Elbows Dimensions
| Part No. | (A) Min. UL Radius, inches | (B) Straight Leg Each End, inches | (C) Offset, inches | |
|---|---|---|---|---|
 | 012RE45 | 4 | 1.87 | 2.52 |
| 034RE45 | 4.5 | 2.11 | 2.83 | |
| 100RE45 | 5.75 | 2.26 | 3.35 | |
| 125RE45 | 7.25 | 2.76 | 4.02 | |
| 150RE45 | 8.25 | 3.25 | 4.72 | |
| 200RE45 | 9.5 | 4.29 | 5.83 | |
| 250RE45 | 10.5 | 5.12 | 6.69 | |
| 300RE45 | 13 | 6.14 | 8.15 | |
| 350RE45 | 15 | 6.73 | 9.17 | |
| 400RE45 | 16 | 7.09 | 9.69 | |
| 500RE45 | 24 | 11.06 | 14.92 | |
| 600RE45 | 30 | 12.72 | 17.8 |
| UPCs | ||
|---|---|---|
| Package Size | Quantity | UPC |
| Master Package | 15 | 834437001565 |
| Inner Box | N/A | 10834437001562 |
| Skid | 675 | 40834437001563 |
| Package Dimensions | ||
|---|---|---|
| Length (in.) | Width (in.) | Height (in.) |
| 14.37 | 13.19 | 6.69 |
